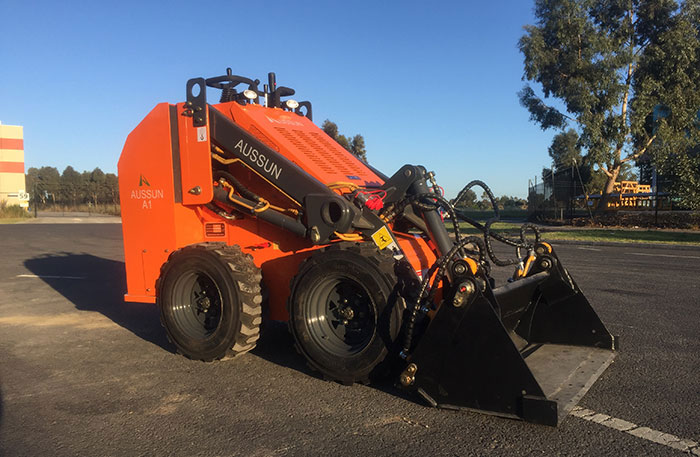

A1 mini skid steer loader
A1 mini skid steer loader is AUSSUN’s newest and most innovative design model.
With 24.4kw powerful diesel engine ,Italy HANSA pump& joystick , 4 wheel drive motors , it can easy do 5- 8 people’s work , will greatly improve your working efficiency . It’s a great machine for landscapers , builders , electricians ,contractors .
- SPECIFICATION
- STANDARD FEATURS
- DOWNLOAD
|
Model |
A1 |
A2 |
|
Engine brand |
Perkins 403D-15 |
|
|
Engine power |
24.4kw/33.2HP |
|
|
Engine Max torque/ speed |
96Nm/2800rpm |
|
|
Hydraulic System pressure |
20MPA |
|
|
Hydraulic system flow |
11.2/44.8/56L/MIN |
|
|
operating weight |
1100kg |
1350kg |
|
Tipping load |
730kg |
900kg |
|
related load |
365kg |
320kg |
|
bucket capacity |
0.15CBM |
0.15CBM |
|
speed |
8.6km/h |
5.5km/h |
|
fuel tank capacity |
53L |
53L |
|
Hydraulic tank capacity |
52L |
52L |
|
Tyre model |
23*8.5-12 |
180*72*40 |
|

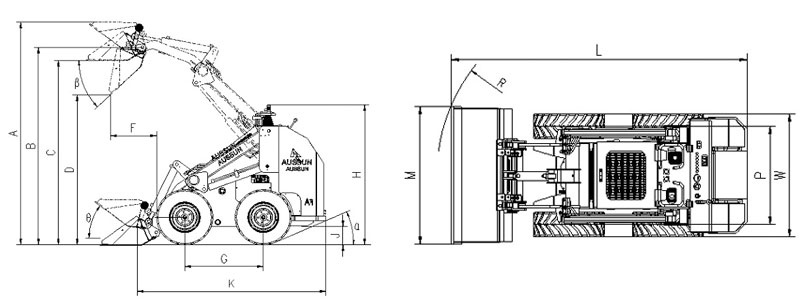

Item |
A1( wheel tyres ) |
A2 (Rubber track ) |
|
Max working height（A） |
2355mm |
2355mm |
|
Max pin height（B） |
2088mm |
2122mm |
|
Max height when bucket in level （C） |
1942mm |
1976mm |
|
Max dumping height（D） |
1588mm |
1622mm |
|
Unloading distance （F） |
464mm |
528mm |
|
Wheel base （G） |
817mm |
1000mm |
|
Wheel tread（P） |
819mm |
800mm |
|
Discharging angle（β） |
43o |
43o |
|
Collecting angle （θ） |
37o |
37o |
|
Departure angle （α） |
24o |
30 |
|
Total height（H） |
1479mm |
1514mm |
|
Ground clearance（J） |
195mm |
230mm |
|
Minimum turning radius （R） |
1492mm |
1507mm |
|
Length without bucket（K） |
1961mm |
1961mm |
|
Total width（W） |
1029mm |
980mm |
|
Bucket width（M） |
1150mm |
1150mm |
|
Total length（L） |
2438mm |
2438mm |
1.large powerful engine 24.4kw/33HP 2800rmp
2.200mm Big cross ability , ground clearance is 200mm
3.Italy Servo & Italy joystick , more easy to operate
4. Double output , big hydraulic flow :56L/min
5. large oil tank capacity :53L
6. Safety protection device
7. Quadruple pump , 4 drive motor , more powerful
8. Super strength structure design
9.large capacity battery
