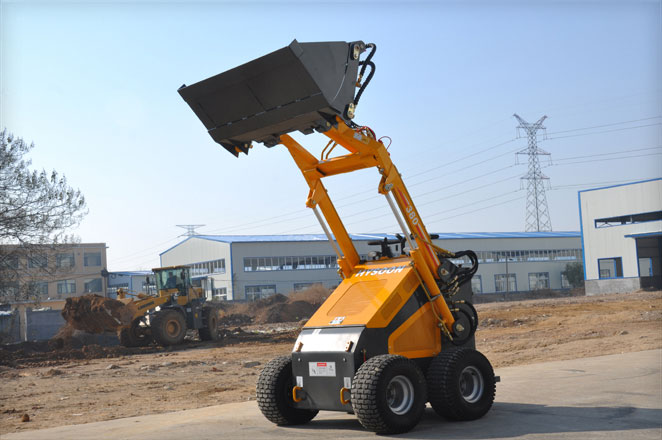

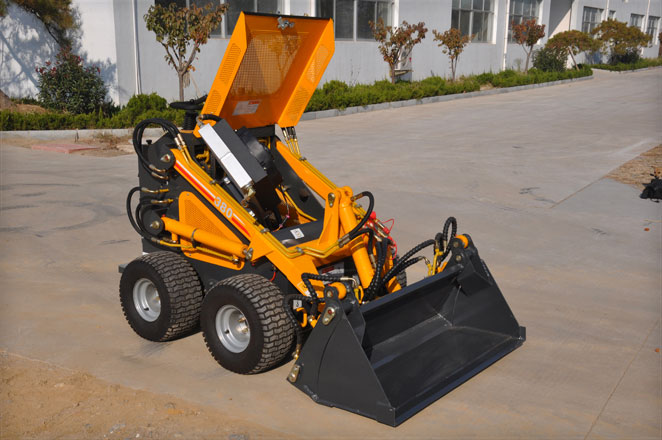

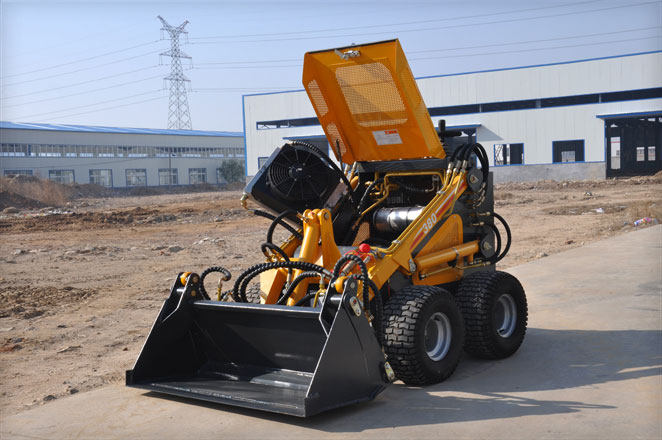

HY380 mini skid steer loader
HY380 Mini Skid Loader has recently been redesigned to provide even greater productivity on the jobsite. The loader possesses easier operating, greater tipping capacities, and a higher dump height.
Piston-type (what Type) Hydraulic Motors provide the machine with a higher torque. Four-wheel drive enables the machine to work in a variety of situations.
- SPECIFICATION
- STANDARD FEATURS
- DOWNLOAD
|
Engine Brand |
USA Briggs&Stratton engine |
|
Engine power |
Petrol 23HP |
|
Rotating speed |
3600rpm |
|
Noise |
≤95 db |
|
Hydraulic pressure |
17 mpa |
|
Cylinder raise time |
4.27s |
|
Cylinder dump time |
1.34s |
|
Cylinder lower time |
3.31s |
|
Loading weight |
200kg |
|
Bucket capacity |
0.15CBM |
|
Max lifting power |
375kg |
|
Speed |
0-5.5 Km/h |
|

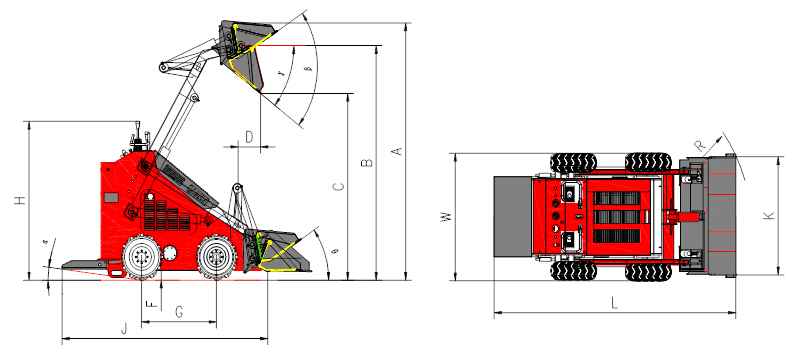

Max working height（A） |
2115 mm |
|
Max pin height （B） |
1856 mm |
|
Max dump height（C） |
1460 mm |
|
The highest point discharge distance（D） |
388 mm |
|
Bucket swing angle（β） |
55° |
|
Bucket unloading angle（γ） |
30° |
|
Opening-closing angle（θ） |
25° |
|
Angle of departure（α） |
8° |
|
Total height （H） |
1205 mm |
|
The height from the ground（F） |
90 mm |
|
Wheelbase （G） |
636 mm |
|
No bucket length（J） |
1752 mm |
|
Total width （W） |
1033 mm |
|
Bucket width （K） |
980 mm |
|
Total length（L）（with bucket） |
2206 mm |
|
Turning radius (R) |
1307 mm |
1. Engine:Briggs & Stratton Petrol Engine(21HP)
2. Motor: Low speed high torque motors
3.Hydraulics Pumps: Gear Pump
4. Bucket:Plain
5.System pressure:17Mpa
6.System flow: 51L/min
7.Speed:0-5.5km/h
8. Size ( length *width *height):2206*1033*1205mm
9.Bucket capacity:0.15cbm/200kg
10.Operating weight:940kg
11. Tyre:Chevron tire
